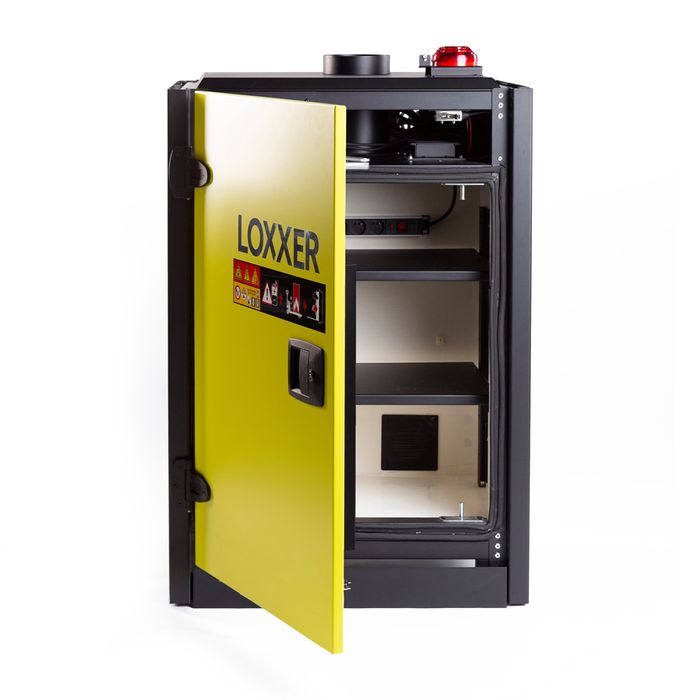

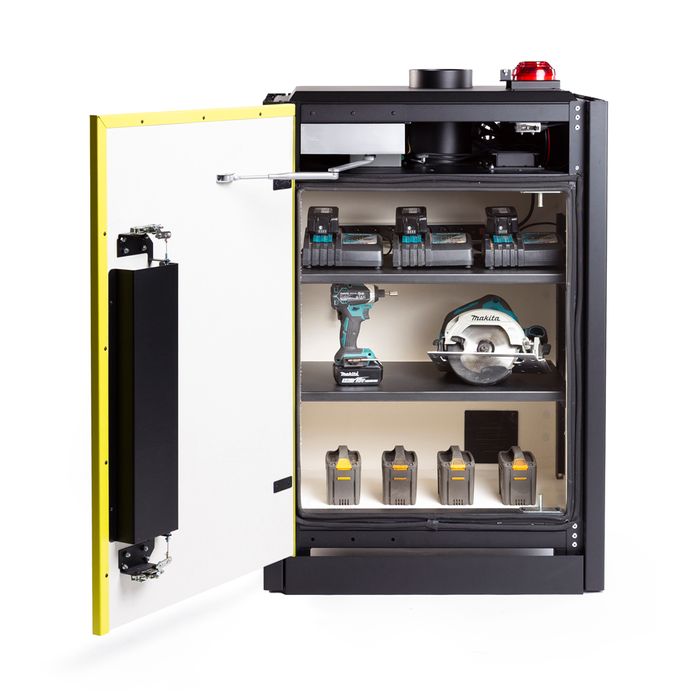

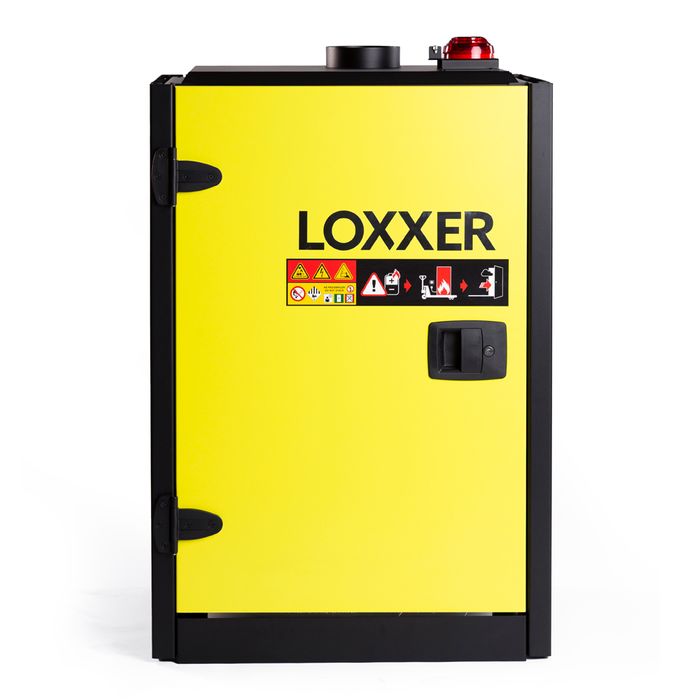

1 DOOR LITHIUM-ION STORAGE CHARGE AND STORAGE CABINET – VDMA CERTIFIED
)
)
)
The storage and charging cabinet is designed for indoor use to safely store and charge Lithium-ion batteries, primarily intended for batteries used in electric bicycles, e-scooters, hand and garden tools, drones, walkie-talkies, and similar devices.
GENERAL OPERATION
- Ensure safe operation
- Detect smoke and temperature
- Alarm in case of danger
- Control lithium fires within the cabinet to prevent fire spread
- Activate aerosol fire suppression (optional)
SPECIFICATIONS
- Fire-resistant storage and charging cabinet ✓
- 2 fire-resistant shelves (To prevent fire spread between different levels) ✓
- Adjustable levelling feet ✓
- Cut-outs for pallet jack on all sides ✓
- Smoke and temperature detection ✓
- Alarm system (via audio alarm and RGB LED) ✓
- Connection provided for ventilation system
(Also vents excess air pressure) ✓ - Active ventilation
(to prevent heat build-up in the cabinet) ✓ - 1 charging strip
(The number of outlets depends on the type of charging strip) ✓ - 1 self-closing door with lock ✓
- Connection available for wired integration with fire control panel ✓
- Optional: aerosol fire suppression system ✓
- Optional: M2M-module ✓
TECHNICAL SPECIFICATIONS
| Type | LOXK1100 VDMA |
| Height (excl. audiovisual alarm) | 1160mm |
| Height (total height incl. alarm) | Inner: 767mm Outer: 1186mm |
| Width | Inner: 688mm Outer: 760mm |
| Depth | Inner: 520mm Outer: 585mm |
| Weight | 162.5 kg |
| Power supply standard | 1 x 230V (16amp) |
| Siren sound level | 94-106 dB(A) |
| Charging Strip | 1 charging |
Smoke and temperature detection
The cabinet is equipped with smoke and temperature detection for a quick warning in case of fire hazard.
M2M-module (optional)
The LOXK2000 VDMA can be equipped with a smart M2M module, ensuring you are
always aware of what is happening inside the cabinet. Thanks to the connection with
multiple networks, you receive reliable notifications and can easily monitor the status.
Aerosol Fire Suppression System (optional)
The cabinet can be equipped with a certified aerosol fire suppression system. Upon smoke detection, the aerosol will be immediately activated and spread throughout the entire space of the cabinet. The aerosol cools and controls the battery.
)
)
)
)
