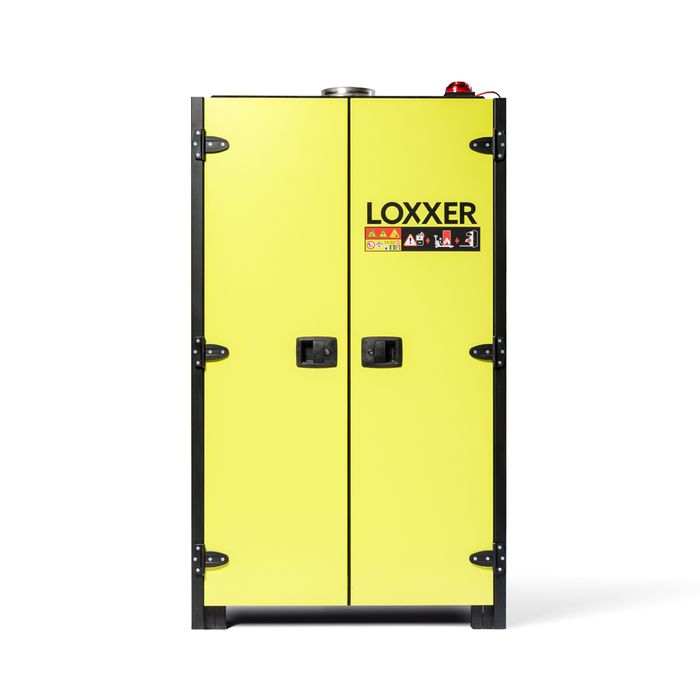

2 DOOR LITHIUM-ION STORAGE CHARGE AND STORAGE CABINET – VDMA CERTIFIED
)
)
)
GENERAL OPERATION
- Ensure safe operation
- Detect smoke and temperature
- Alarm in case of danger
- Control lithium fires within the cabinet to prevent fire spread
- Activate aerosol fire suppression (optional)

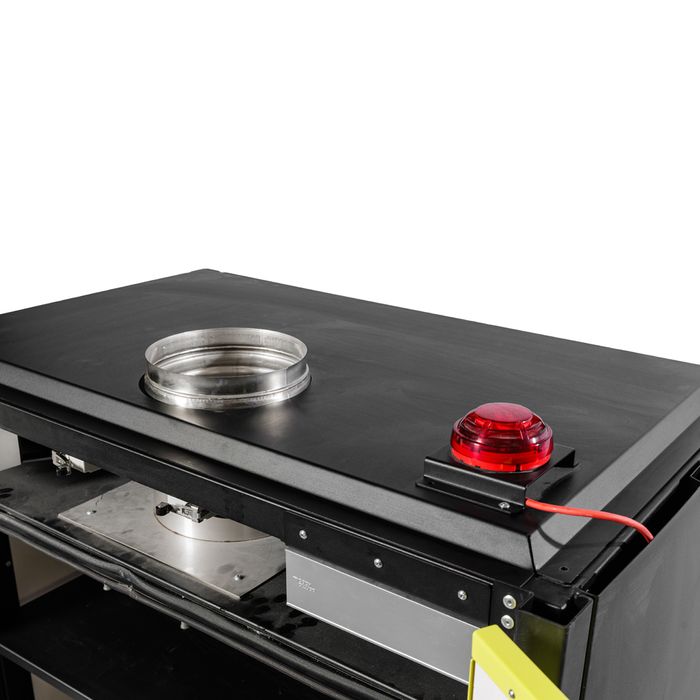

Smoke and temperature detection
The cabinet is equipped with smoke and temperature detection for a quick warning in case of fire hazard.
Doors and locks
Two self-closing doors with door contacts. These register if a door remains open for longer than 5 minutes and the charging will automatically be stopped. The doors are equipped with a multi-point locking system and can be locked with a key.

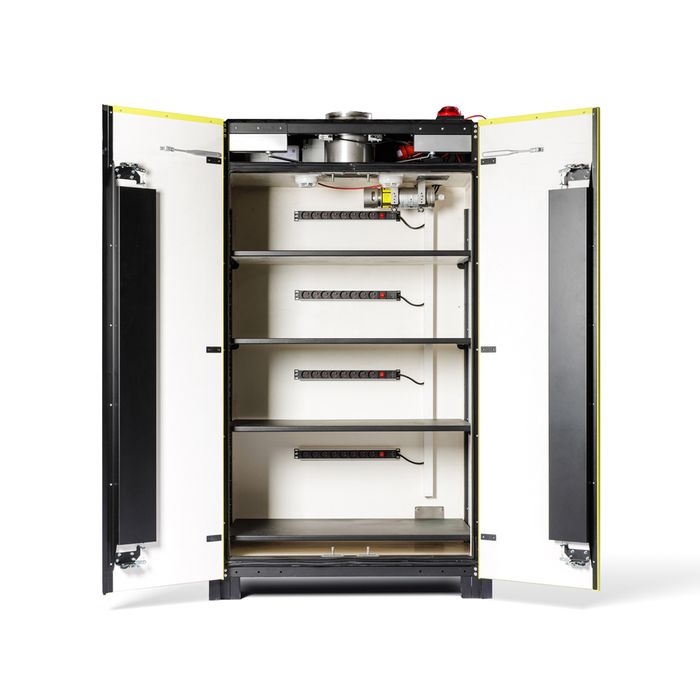

Shelves
The shelves are designed to prevent fire spread between the different levels and have a load capacity of up to 70kg. There are 4 adjustable shelves provided, allowing the
distance between the shelves to be adjusted.
Support Footrests
The cabinet is equipped with adjustable footrests and can be moved with a pallet jack from all four sides, ensuring quick movement of the cabinet outside in case of incidents.
M2M-module (optional)
The LOXK2000 VDMA can be equipped with a smart M2M module, ensuring you are always aware of what is happening inside the cabinet. Thanks to the connection with multiple networks, you receive reliable notifications and can easily monitor the status.
Aerosol Fire Suppression System (optional)
The cabinet can be equipped with a certified aerosol fire suppression system. Upon smoke detection, the aerosol will be immediately activated and spread throughout the
entire space of the cabinet. The aerosol cools and controls the battery.
| Type | LOXK2000 VDMA |
| Height (excl. audiovisual alarm) | 2000mm |
| Height (total height incl. alarm) | Inner: 1600mm Outer: 2040mm |
| Width | Inner: 1070mm Outer: 1142mm |
| Depth | Inner: 680mm Outer: 765mm |
| Weight | 450 kg |
| Power supply standard | 3 x 400V + N (16amp) |
| Airflow | 1.21m³/minute |
| Ambient temperature | 5-35°C |
| Relative humidity | 30-70% |
| Siren sound level | 94-106 dB(A) |
Smoke and temperature detection
The cabinet is equipped with smoke and temperature detection for a quick warning in case of fire hazard.
Doors and locks
Two self-closing doors with door contacts. These register if a door remains open for longer than 5 minutes and the charging will automatically be stopped. The doors are equipped with a multi-point locking system and can be locked with a key.
Shelves
The shelves are designed to prevent fire spread between the different levels and have a load capacity of up to 70kg. There are 4 adjustable shelves provided, allowing the distance between the shelves to be adjusted.
Support Footrests
The cabinet is equipped with adjustable footrests and can be moved with a pallet jack from all four sides, ensuring quick movement of the cabinet outside in case of incidents.
M2M-module (optional)
The LOXK2000 VDMA can be equipped with a smart M2M module, ensuring you are
always aware of what is happening inside the cabinet. Thanks to the connection with
multiple networks, you receive reliable notifications and can easily monitor the status.
Aerosol Fire Suppression System (optional)
The cabinet can be equipped with a certified aerosol fire suppression system. Upon smoke detection, the aerosol will be immediately activated and spread throughout the entire space of the cabinet. The aerosol cools and controls the battery.
)
)
)
)
