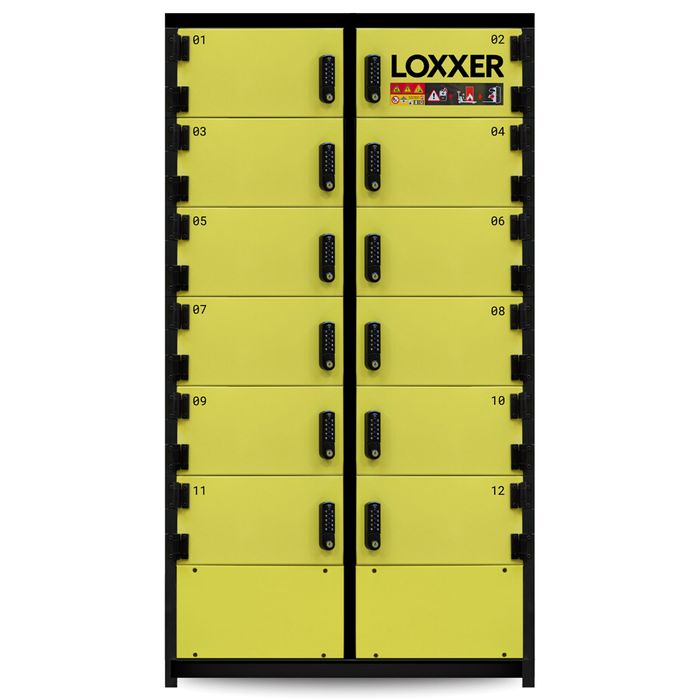

LITHIUM-ION 12 LOCKER CHARGE AND STORAGE CABINET
)
)

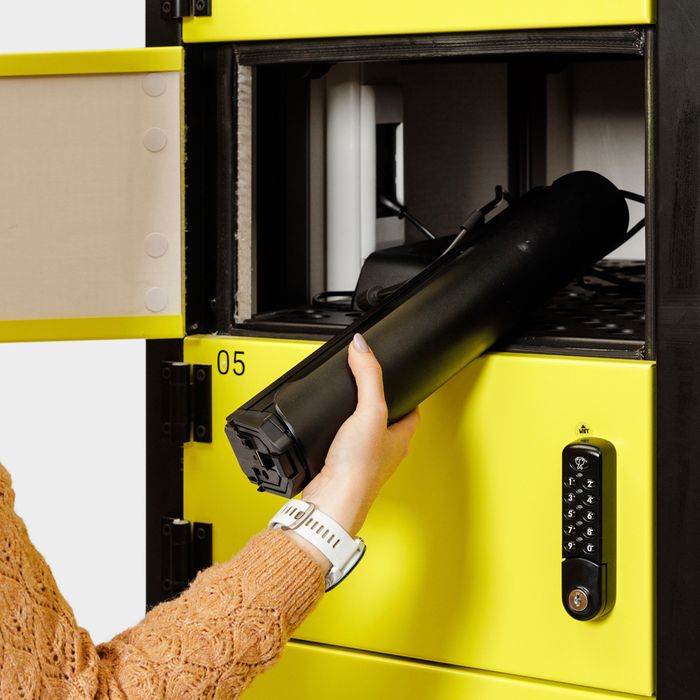

This makes the locker cabinet ideal for travellers and commuters with an electric bicycle or scooter. It offers them a secure place to charge and store their battery.
- Fire-resistant storage and charging cabinet ✓
- Adjustable levelling feet ✓
- Cutouts for pallet jack on all sides ✓
- Smoke and temperature detection ✓
- Active ventilation to prevent heat buildup in the cabinet ✓
- 12 lockers, each with 2 power outlets ✓
- Each locker is equipped with a combination lock ✓
- Alarm system via audiovisual signals ✓
- Connection provided for wired connection to fire control panel ✓
- Optional: aerosol fire suppression system ✓
- Optional: M2M-module ✓
| Type | LOX12 |
| Height (excl. audiovisual alarm) | 1938mm |
| Width | 1042mm |
| Depth | 765mm |
| Weight | 400 kg |
| Total height (including removable alarm) | 2015mm |
| Power supply standard | 3 x 400V+N (16amp) |
| Maximum load capacity shelf | 70 kg |
| Airflow | 1.21 m³/minute |
| Ambient temperature | 5-35 °C |
| Relative humidity | 30-70 % |
| Siren sound level | 94-106 dB(A) |
| Lockers quantity (Dimensions) | 12 Quantity (W: 484 x H: 246 x D: 683) |
Smoke and temperature detection
The cabinet is equipped with smoke and temperature detection for a quick warning in case of fire hazard.
M2M-module (optional)
The LOXK2000 VDMA can be equipped with a smart M2M module, ensuring you are
always aware of what is happening inside the cabinet. Thanks to the connection with
multiple networks, you receive reliable notifications and can easily monitor the status.
Aerosol Fire Suppression System (optional)
The cabinet can be equipped with a certified aerosol fire suppression system. Upon smoke detection, the aerosol will be immediately activated and spread throughout the entire space of the cabinet. The aerosol cools and controls the battery.
)
)
)
)
