TGS Turning/Boring Machine Guard

PUWER Machinery Guarding Stand: 3/H50

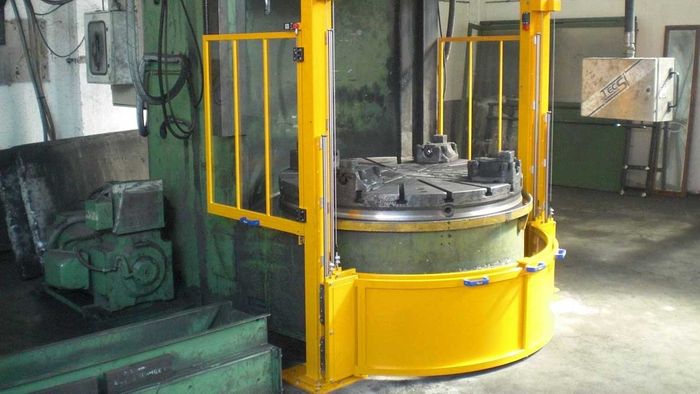

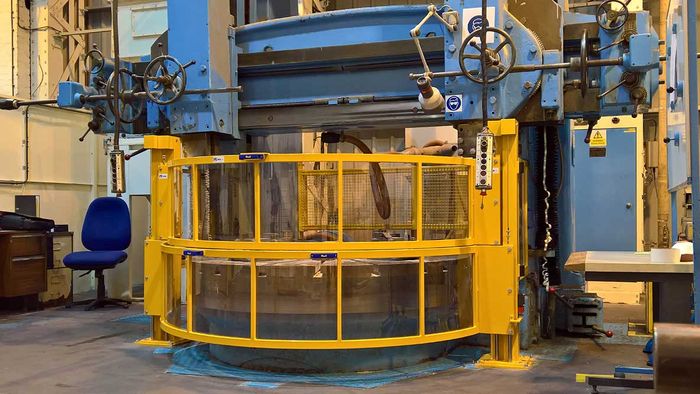

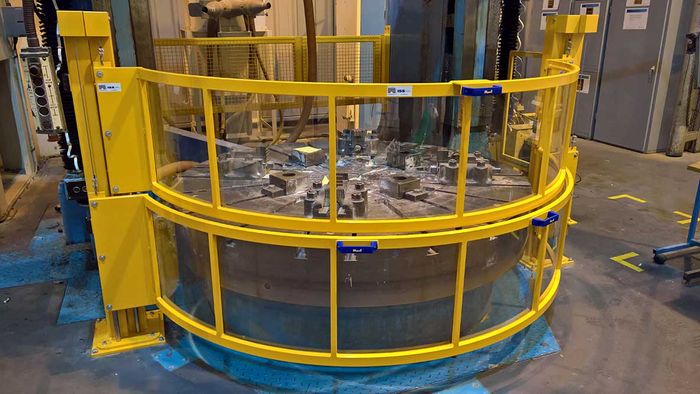

Repar2 TGS guards are made specifically for vertical turning lathes and vertical boring machines and are the best option available.

The TGS range is available with single or double curved, 500mm-high, steel-framed screens with shockproof poylcarbonate or steel mesh on request. TGS01 is a single screen and TGS02 is the double-screen version. The guards run on hardened linear guide rails with a diameter of 20mm and are fully counterbalanced, thus avoiding any manual handling issues.

The guard is anchored to the ground on a double plate. This system allows for final alignment on an uneven floor. The hinged side screens are manufactured and supplied to suit. Standard interlocking (supplied) is with a 2NC-1NO IP67 tongue switch. Solenoid interlocking is optional.
